Angular Contact Bearing (Open, A Type )

Series

Click series for Specification Chart

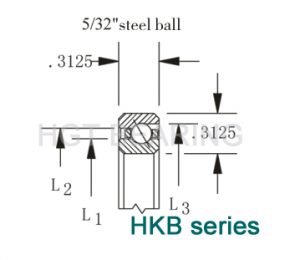

Schematic Diagram:

Parameters:

HGT KB angular contact ball bearing, the materials of rings could be GCr15 and stainless steel. Please contact us if you have questions about this type of bearings:

HGT KB angular contact ball bearing, the open style angular contact Bearing, is used widely in the Textile printer, Medical devices, Rotary tables, Radar, Communication, Aircraft, Aerospace, Astronomy instrumentation, Industrial robotics, etc., where needed bearings that have higher capacity, lightweight, and have low friction.  They are used to advantage in applications where space and weight considerations are meaningful.

HKB series reference table

HKB series Weight
Kg
Type Dimension(inch/mm) Basic Load Ratings(N)
d D L1 L2 L3 Radial Axial
Cor Cr Coa Ca
HKB020A 2.000


50.8

2.625


66.675

2.231


56.7

2.393


60.8

2.464


62.6

4850 2130 14000 6130 0.068
HKB025A 2.500


63.5

3.125


79.375

2.731


69.4

2.893


73.5

2.964


75.3

5960 2450 17160 7070 0.086
HKB030A 3.000


76.2

3.625


92.075

3.231


82.1

3.393


86.2

3.462


87.9

6890 2710 19870 7780 0.100
HKB035A 3.500


88.9

4.125


104.775

3.731


94.8

3.893


98.9

3.962


100.6

7960 2980 23030 8580 0.122
HKB040A 4.000


101.6

4.625


117.475

4.432


107.5

4.393


111.6

4.460


113.3

9070 3250 26180 9340 0.136
HKB042A 4.200


107.95

4.875


123.825

4.481


113.8

4.643


119.6

4.710 9560 3330 27560 9650 0.141
HKB045A 4.500


114.3

5.125


130.175

4.731


120.2

4.893


124.3

4.960


126.0

10000 3470 28890 9960 0.154
HKB047A 4.750


120.65

5.375


136.525

4.981


126.6

5.143


130.6

5.210


132.2

10620 3600 30720 10400 0.159
HKB050A 5.000


127

5.625


142.875

5.231


132.9

5.393


137.0

5.460


138.7

11110 3690 32050 10710 0.168
HKB055A 5.500


139.7

6.125


155.575

5.731


145.6

5.893


149.7

5.958


151.3

12180 3960 35200 11380 0.181
HKB060A 6.000


152.4

6.625


168.275

6.231


158.3

6.393


162.4

6.458


164

13290 4180 38360 12050 0.200
HKB065A 6.500


165.1

7.125


180.975

6.731


171.0

6.893


175.1

6.958


176.7

14220 4360 41070 12620 0.213
HKB070A 7.000


177.8

7.625


193.675

7.231


183.7

7.393


187.8

7.456


189.4

15340 4580 44270 13250 0.227
HKB075A 7.500


190.5

8.125


206.375

7.731


196.4

7.893


200.5

7.955


202.1

16450 4800 27230 13870 0.245
HKB080A 8.000


203.2

8.625


219.075

8.231


209.1

8.393


213.2

8.453


214.7

17510 5020 50580 14490 0.259
HKB090A 9.000


228.6

9.625


244.475

9.231


234.5

9.393


238.6

9.451


240

19560 5420 56450 15600 0.290
HKB100A 10.000


254

10.625


269.875

10.231


259.9

10.393


264

10.449


265.4

21740 5780 62760 16710 0.322
HKB110A 11.000


279.4

11.625


295.275

11.231


285.3

11.393


289.4

11.447


290.8

23780 6130 68630 17780 0.354
HKB120A 12.000


304.8

12.625


320.675

12.231


310.7

12.393


314.8

12.445


316.1

25960 6530 74940 18850 0.386
HKB140A 14.000


355.6

14.625


371.475

14.231


361.5

14.393


365.6

14.439


366.8

30050 7200 86680 20760 0.445
HKB160A 16.000


406.4

16.625


422.275

16.231


412.3

16.393


416.4

16.433


417.4

34270 7870 98900 22670 0.509
HKB180A 18.000


457.2

18.625


473.075

18.231


463.1

18.393


467.2

18.425


468

38490 8490 111080 24490 0.572
HKB200A 20.000


508

20.625


523.875

20.231


513.9

20.393


518

20.416


518.6

42720 9110 123260 26230 0.635
