In the industrial automation and mechanical manufacturing industries, linear guides are mechanical components that In industrial automation and mechanical manufacturing, linear guideways are essential components that enable smooth, straight-line motion—especially for heavy loads. These systems rely on different types of bearings to determine performance, precision, and durability.

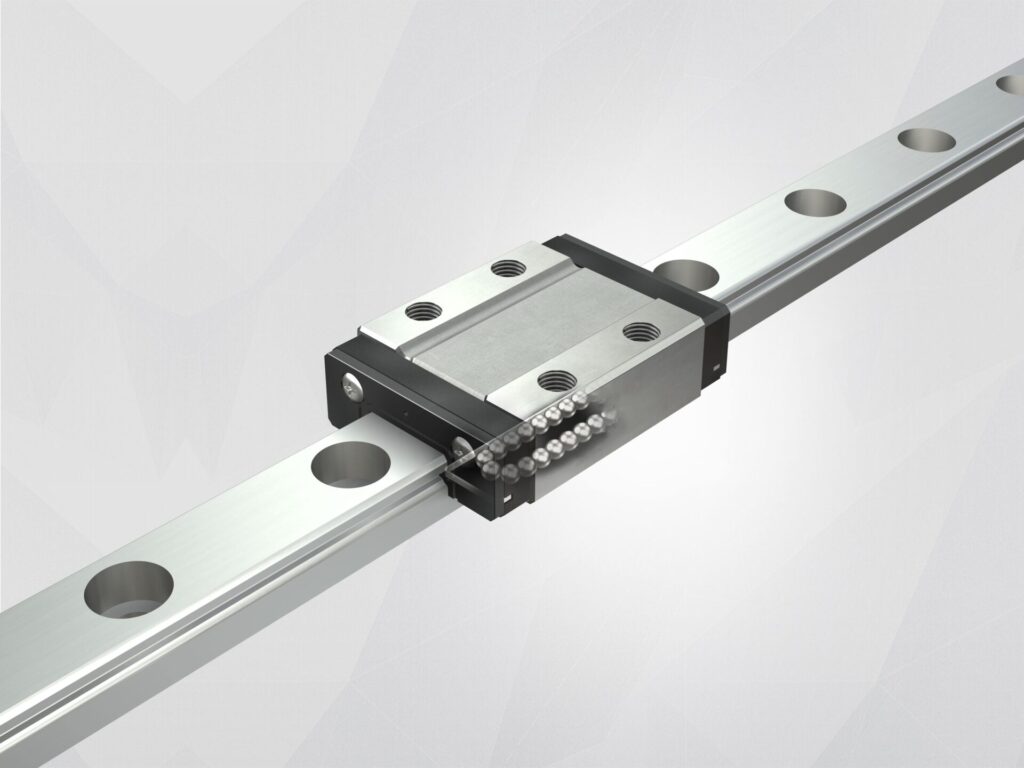

Ball-Type Guideway Bearings

Ball-type linear guides are among the most used linear motion systems. They utilize multiple sets of ball bearings that roll in a continuous loop inside the slider.

Key Advantages:

• Low friction coefficient
• Smooth and quiet movement
• High precision

Typical Applications:

• Semiconductor equipment
• Medical devices
• Laboratory micro-motion platforms
• Medium- to high-speed, light- to medium-load environments

Roller-Type Guideway Bearings

These bearings use cylindrical rollers instead of balls, offering a larger contact surface. This results in greater rigidity and load-bearing capacity.

Key Advantages:

• High rigidity
• Excellent resistance to deformation
• Suitable for high-load conditions

Typical Applications:

• CNC machine tools
• Heavy-duty automation equipment
• Large-scale material handling systems
• Applications requiring maximum stability

Crossed Roller Guideway Bearings

Crossed roller guides use cylindrical rollers arranged in a crisscross pattern. They support loads in all directions, enabling precise and stable linear motion.

Key Advantages:

• Ultra-high precision
• Excellent rigidity and smooth operation
• Compact design available in various sizes

Typical Applications:

• Multi-axis robotic systems
• Precision positioning stages
• Turntables
• Medical imaging equipment

Other Nonlinear Guideway Bearings

These include specialized products such as:

• Ball Spline Bearings – for infinite linear motion on a spline shaft
• Cross Guides & Curve Guides – for applications requiring curved or non-linear motion
• Split-Type & Gear-Integrated Bearings – for compact or modular system designs

Bearing Selection Tips

Consideration	Recommendation
Load Type	Identify if the load is radial, axial, or combined
Operating Speed	Use ball guides for high speed; roller guides for heavy-duty loads
Installation Space	Opt for compact bearing types in space-limited applications
Environmental Conditions	Choose sealed or stainless-steel types for corrosive or cleanroom environments

Final Thoughts

Guideway bearings are core components in linear motion systems. Selecting the right type has a direct impact system performance, accuracy, and maintenance costs. Proper selection enhances equipment life and operational efficiency.
