USHG – Your Trusted High-Precision Bearing Partner

As industries such as aerospace, robotics, and unmanned aerial vehicles (UAVs) continue to evolve, the demand for reliable, high-performance motion systems has never been greater. At the heart of these systems lies a critical component: the gimbal bearing. USHG is proud to offer comprehensive gimbal bearing solutions designed to meet the most stringent performance requirements in dynamic and demanding environments.

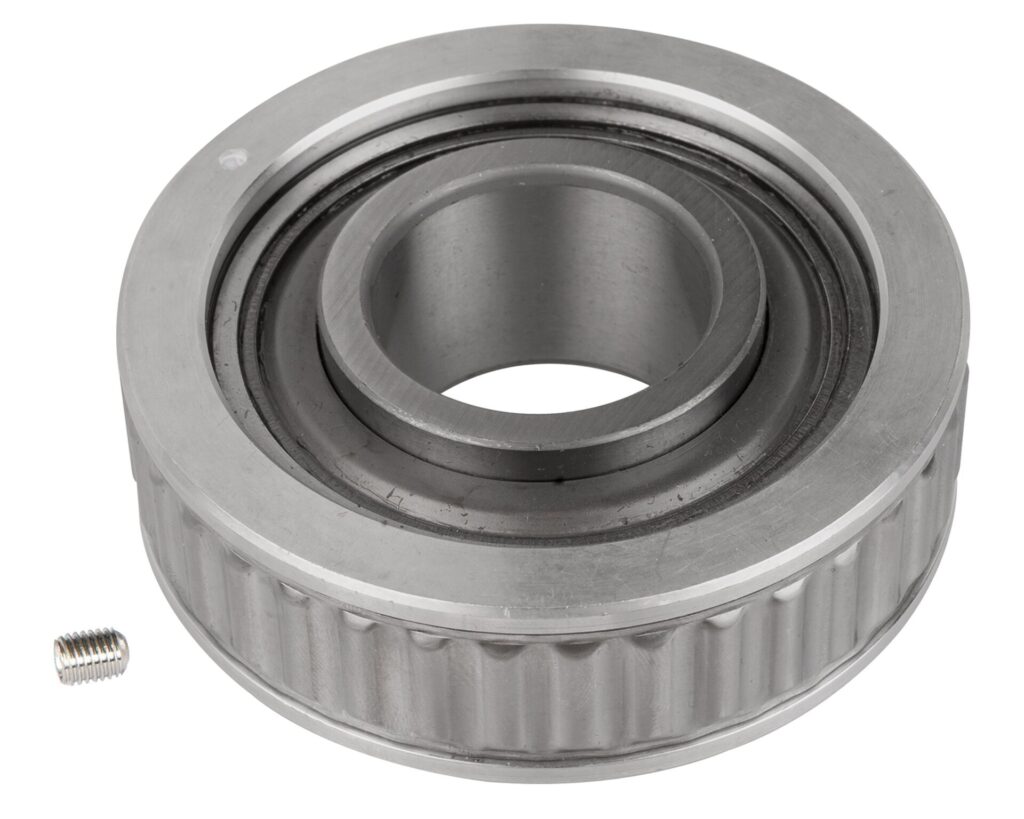

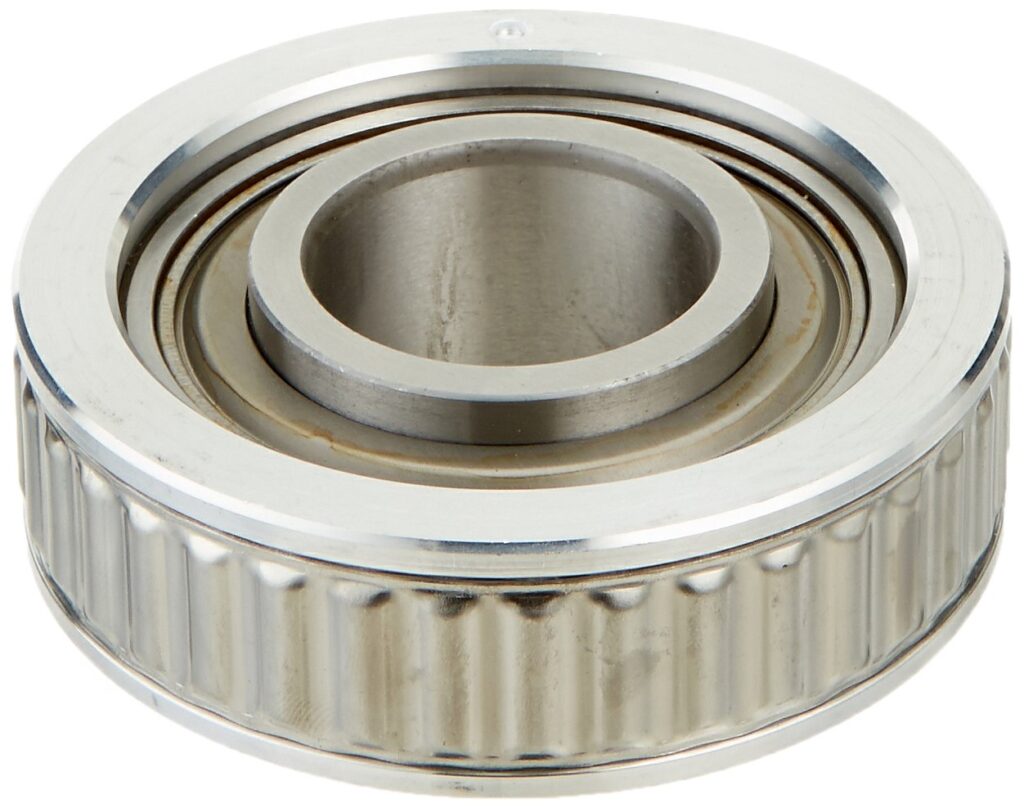

What Are Gimbal Bearings?

Gimbal bearings are specialized high-precision, low-friction bearings designed to support rotational and tilting motions in gimbal systems. Typically installed at the joints of gimbal structures, they ensure smooth and stable angular adjustments, enabling precise positioning and stable image capture for camera equipment.

Key Functions of Gimbal Bearings

1. Superior Stability

• Shock and Vibration Damping: Gimbal bearings effectively absorb shocks and vibrations during operation, such as those encountered in flight, ensuring clear and steady image capture.
• Smooth Motion Transmission: Their low-friction properties enable seamless rotation and tilting, minimizing image jitter and mechanical resistance.
• High-Precision Control
• Multi-Axis Angle Adjustment: Supports precise control across pitch, roll, and yaw axes, allowing the camera or payload to maintain accurate orientation.
• Responsive Performance: High manufacturing accuracy allows the bearing to respond swiftly to control commands for real-time directional adjustments.
• Robust Load Capacity
• Payload Support: Capable of carrying cameras and associated hardware while maintaining the responsiveness and flexibility of the gimbal.
• Extended Durability: Designed for long operational life and minimal degradation, even under repetitive motion and varying loads.
• Environmental Adaptability
• Corrosion Resistance: Built to withstand harsh environmental conditions, including exposure to moisture, dust, and corrosive elements.
• Wide Temperature Range: Delivers consistent performance in both high- and low-temperature environments, ensuring year-round operational reliability.

Technical Requirements for Gimbal Bearings

1. High Precision Manufacturing
   To ensure consistent smoothness and positional stability, gimbal bearings must be manufactured with extremely tight tolerances. Internal clearance must be carefully controlled to eliminate any play that could compromise image stability or orientation accuracy.
2. Low Friction Design
   Low-friction properties are essential to reduce power consumption, extend UAV flight duration, and facilitate quick, accurate control responses.
3. Lightweight Construction
   Bearing weight directly impacts system performance, particularly in aerial platforms. Materials such as titanium alloys, aluminum alloys, and advanced ceramics are often used to minimize weight without sacrificing strength.
4. High Reliability & Sealing Performance
   Gimbal bearings must endure long-term use in demanding conditions. Sealing performance is also vital to prevent contamination from dust, moisture, and other particulates that may affect bearing operation.

Typical Applications of Gimbal Bearings

1. Aerial Photography Drones
Gimbal bearings stabilize the camera system during flight, ensuring high-quality, blur-free footage. Market leaders such as DJI utilize high-precision bearings to enable seamless camera motion.

2. Industrial Inspection Drones
Used in applications such as power line and pipeline inspection, these drones require bearings that maintain stable operation in complex environments—including strong winds, high temperatures, and exposure to corrosive substances.

3. Agricultural Drones
Support systems such as sensors and sprayers for precision farming tasks. Stable bearing performance is essential to ensure accurate, efficient pesticide or fertilizer application.

4. Security and Emergency Response Drones
In rescue or security operations involving difficult terrain, reliable gimbal bearings ensure consistent camera tracking and rapid responsiveness, even in shock-prone scenarios.

USHG Bearings: A Trusted Name in Gimbal Bearing Solutions

With decades of expertise and a commitment to innovation, USHG Bearings has become a trusted name in the high-precision bearing industry. Our products serve a wide range of applications—from UAV gimbal systems to robotic joints and aerospace stabilization platforms.

Core Product Offerings

• Angular Contact Ball Bearings
  Ideal for applications requiring high-speed, low-friction rotation with excellent radial and axial load handling.
• Point Contact Ball Bearings
  Support bidirectional axial loads in compact form factors, suitable for space-constrained gimbal designs.
• Thin-Section Bearings
  Lightweight yet structurally strong, tailored for drone applications where weight savings are essential.
• Custom-Built Solutions
  USHG offers comprehensive customization services to meet the specific needs of OEMs and system integrators across industries.

Why Choose USHG Bearings?

Advanced Manufacturing Techniques: Employs cutting-edge technologies to ensure exceptional precision and durability.

Extensive Industry Expertise: Deep understanding of the critical requirements of gimbal systems, driving continuous design optimization.

Global Service Reach: Serving customers worldwide across sectors including aerospace, robotics, and defense.

Rigorous Quality Control: Every bearing undergoes comprehensive testing to guarantee reliable performance and consistent quality.

Conclusion

As gimbal systems play increasingly pivotal roles across a wide range of technologies, the importance of high-quality bearings cannot be overstated. USHG is proud to support this evolution by delivering advanced gimbal bearing solutions that empower engineers, designers, and innovators to achieve optimal system performance. Whether you're developing UAVs, robotic arms, or aerospace platforms, USHG is your reliable partner for precision, performance, and peace of mind.

Contact us today to learn more about our full range of gimbal bearing products and custom engineering services.
